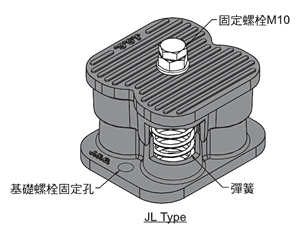

JL Spring Mount |
 |
|
Feature |
|
|
 |
Weather resistance is good
Easy, low cost installation |
|
Static deflection to 20mm |
 |
Patent No. M351282 |
|
|
|
|
Applicaions |
 |
|
|
 |
Outdoor unit for air conditioning system |
 |
Small air-conditioning plant |
|
|
|
|
|
|
|
|
|
|
|

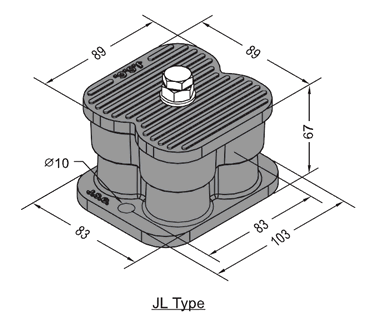

Dimensions/Rated Capacity |
|
Part Number |
Rated Capacity
Kgs |
Spring Rate
Kg/mm |
Rated Defl.
mm |
Color Code |
JL-050 |
30~50 |
2.4 |
20 |
Blue |
JL-080 |
50~80 |
4.0 |
20 |
Drak Green |
|
|
