SD-600 Stainless Steel Expansion Joint SD-600產品圖

Feature

The OMEGA - shaped bellows can eliminate the defect of
  partial stress concentration and with good performance
  of absorb vibrations
This braid sheath is designed to be strong enough to
  withstand elongation for the full pressure rating of the hose.

Applicaions

Absorbing in vibration and noise which
  making by pump and air compressor.
Connecting pipe line of ship engines'
  cooling system.
General piping system.

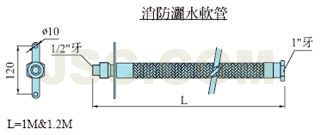

消防撒水軟管產品圖
SD-600不銹鋼伸縮接頭目錄下載 SD-600不銹鋼伸縮接頭目錄下載處

   Dimensions/Rated Capacity

Nominal Bore Total Length Bellows Max Offset Working Pressure
mm Inch

mm

 Inch O.D mm t mm mm Inch kg/cm^2
15 1/2 200 8 30.5 0.3 40 26 20
20 3/4 200 8 30.5 0.3 40 26 20
25 1 200 8 38 0.3 38 24 20
32 1 1/4 200 8 46 0.3 36 21 20
40 1 1/2 200 8 56 0.4 33 16 20
50 2 230 9 73.6 0.4 28 15 20
65 2 1/2 230 9 88 0.4 24 13 16
80 3 230 9 102 0.4 20 11 16
100 4 230 9 128 0.4 18 9 13
125 5 280 11 155 0.5 23 14 10
150 6 280 11 185 0.5 20 12 10
200 8 300 12 235 0.6 20 8 10
250 10 330 13 286 0.6 17 8 10
300 12 350 14 340 0.7 15 7 10
