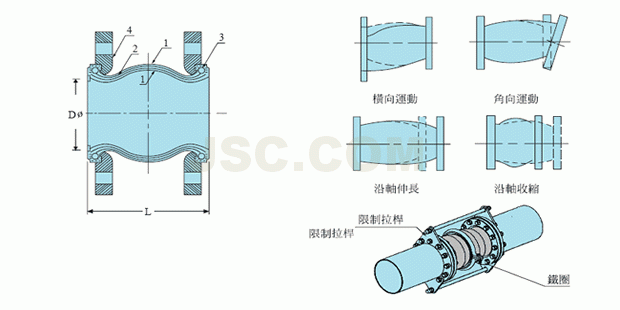

Rubber Flexible Expansion Joint |
 |
No. |
Part |
Material |
1 |
Body |
Neoprene, Other elastomers also available. |
2 |
Reinforce |
Nylon Type Cord. |
3 |
Wire |
Hard Steel Wire. |
4 |
Flange |
Mild Steel, Galvanized Various drilling available |
|
|
|
TYPE |
 |
Single Sphere Connectors |
|
 |
Double Sphere Connectors |
|
 |
Double Sphere Threaded Unions |
|
Nominal Bore |
Dimensions (mm) |
Dimensions (mm) |
Dimensions (mm) |
φD
mm |
L
mm |
Axial Elonga-
tion
mm |
Axial Compre-ssion
mm |
φD
mm |
L
mm |
Axial Elonga-tion
mm |
Axial Compre-ssion
mm |
φD
mm |
L
mm |
Axial Elonga-tion
mm |
Axial Compre-ssion
mm |
1/2" |
|
15 |
203 |
22 |
6 |
3/4" |
|
20 |
185 |
22 |
6 |
1" |
25 |
95 |
8 |
4 |
|
25 |
180 |
22 |
6 |
1-1/4" |
40 |
95 |
8 |
4 |
|
32 |
190 |
22 |
6 |
1-1/2" |
40 |
95 |
8 |
4 |
40 |
175 |
50 |
30 |
40 |
185 |
22 |
6 |
2" |
52 |
105 |
8 |
5 |
52 |
175 |
50 |
30 |
50 |
175 |
22 |
6 |
2-1/2" |
68 |
115 |
12 |
6 |
68 |
175 |
50 |
30 |
65 |
225 |
22 |
6 |
3" |
76 |
130 |
12 |
6 |
76 |
175 |
50 |
30 |
80 |
225 |
22 |
6 |
4" |
103 |
135 |
18 |
10 |
103 |
225 |
50 |
35 |
|
5" |
128 |
170 |
18 |
10 |
128 |
225 |
50 |
35 |
|
6" |
152 |
180 |
18 |
10 |
152 |
225 |
50 |
35 |
|
8" |
194 |
205 |
25 |
14 |
194 |
325 |
50 |
35 |
|
10" |
250 |
240 |
25 |
14 |
250 |
325 |
60 |
35 |
|
12" |
300 |
260 |
25 |
14 |
300 |
325 |
60 |
35 |
|
14" |
320 |
265 |
25 |
16 |
320 |
350 |
40 |
30 |
|
16" |
372 |
265 |
25 |
16 |
372 |
350 |
40 |
30 |
|
18" |
415 |
265 |
25 |
16 |
415 |
350 |
40 |
30 |
|
20" |
454 |
265 |
25 |
16 |
454 |
350 |
40 |
30 |
|
24" |
580 |
254 |
19 |
13 |
580 |
350 |
40 |
30 |
|
Max Pressure |
10 kg/cm^2 |
Max Temperature |
-20℃~104℃ |
-20 ℃ ~ 104 ℃ |
-20 ℃ ~ 115 ℃ |
Vacuum Rating |
400 mm Hg |
400 mm Hg |
405 mm Hg |
Angular Deflection |
15° |
15°~25° |
10°~30° |
|
|
|
|
