| CN Base |
| |
| Feature |
| |
|
 |
Low natural frequency. |
|
Hot dip galvanization finish. |
|
Springs in protective impact-resistance cases. |
|
Quick and easy installation. |
|
Heavy-duty vibration isolation |
|
Weather resistant finish |
|
|
 |
|
| |
| Applicaions |
| |
|
|
Pumps、Motors |
| |
|
|
|
| |
| Finish |
| |
|
|
Hot Dip Galvanization |
| |
|
|
|
|
|
 |

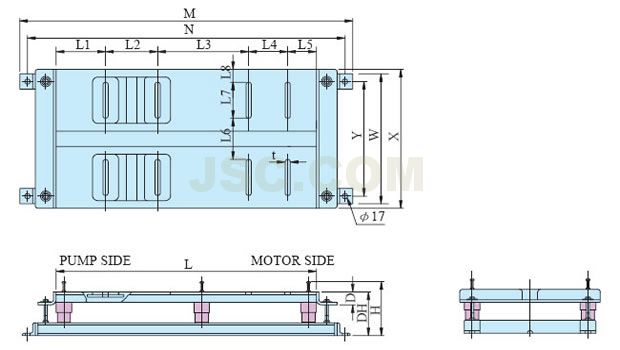

| Dimensions/Rated Capacity |
| |
| Part Number |
Dimensions（mm） |
| L |
X |
W |
H |
DH |
D |
M |
N |
Y |
| CN-55 |
550 |
380 |
345 |
220 |
180 |
50 |
760 |
710 |
270 |
| CN-75 |
750 |
440 |
405 |
220 |
180 |
50 |
960 |
910 |
330 |
| CN-95 |
950 |
480 |
445 |
220 |
180 |
50 |
1160 |
1110 |
370 |
| CN-115 |
1150 |
530 |
495 |
220 |
180 |
50 |
1360 |
1310 |
420 |
| CN-130 |
1300 |
560 |
525 |
220 |
180 |
50 |
1510 |
1460 |
450 |
| CN-145 |
1450 |
580 |
545 |
220 |
180 |
50 |
1660 |
1610 |
470 |
| CN-170 |
1700 |
700 |
665 |
220 |
180 |
50 |
1910 |
1860 |
590 |
| CN-200 |
2000 |
820 |
785 |
220 |
180 |
50 |
2210 |
2160 |
710 |
| 型號 |
尺寸（mm） |
| t |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
L8 |
| CN-55 |
14 |
135 |
130 |
165 |
* |
120 |
100 |
100 |
40 |
| CN-75 |
14 |
210 |
150 |
160 |
100 |
130 |
120 |
120 |
40 |
| CN-95 |
14 |
230 |
150 |
280 |
120 |
170 |
160 |
120 |
40 |
| CN-115 |
14 |
260 |
150 |
390 |
120 |
230 |
210 |
120 |
40 |
| CN-130 |
14 |
290 |
150 |
490 |
130 |
240 |
240 |
120 |
40 |
| CN-145 |
14 |
205 |
150 |
640 |
130 |
325 |
260 |
120 |
40 |
| CN-170 |
18 |
280 |
190 |
680 |
160 |
390 |
310 |
140 |
55 |
| CN-200 |
18 |
350 |
190 |
830 |
200 |
430 |
430 |
140 |
55 |
|
| |
