JC-P Spring Mount

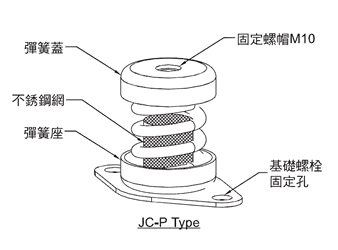

JCP產品圖

Feature


	Allows easy inspection since the spring deflection can be
	visually checked.
	Easy to install and suited to support lightweight equipment.
	Quick and easy installation.
	Weather resistant finish.

Applicaions

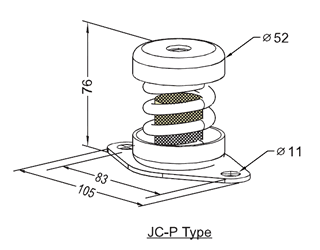

JCP細部圖


	Pumps and compressors.
	Fans and Blowers.
	Air handling units .

Dimensions/Rated Capacity

Part Number	Rated Capacity Kgs	Spring Rate Kg/mm	Rated Defl. mm	Color Code
JC-020-P	10~20	0.8	25	Yellow
JC-030-P	20~30	1.2	25	Drak Green
JC-050-P	30~50	2.0	25	Red
JC-070-P	50~80	2.8	25	Blue
JC-090-P	80~100	3.6	25	Brown
JC-120-P	100~130	4.8	25	Gray
