JD Spring Mount JC產品圖

Feature

Mainly used with an inertial base as an open-type spring
  mount.
Easy to install, allows easy inspection since the spring.
Deflection can be visually checked.
With a spring deflection of 25mm~75mm.
Used for equipment that needs maximum isolation.
Quick and easy installation
Heavy-duty vibration isolation

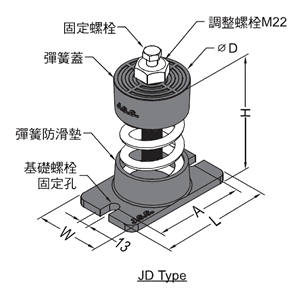

Applicaions JD尺寸圖

Air blowers
Pump Base

JCP型彈簧式避震器目錄下載 JCP型彈簧式避震器目錄下載處
JCP型彈簧式避震器目錄下載 JCP型彈簧式避震器目錄下載處
TYPE Dimensions(mm)
L W A H φD CS
JD-C 145 83 116 154 83 M12
JD-A 145 83 116 164 83 M12

   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs		 Spring Rate
Kg/mm		 Rated Defl.
mm		 Color Code
JD-100-C 90~110 4.0 25

Yellow
JD-150-C 110~150 6.0 25 White
JD-200-C 150~200 8.0 25 Drak Green
JD-250-C 200~250 10.0 25 Red
JD-300-C 250~300 12.0 25 Blue
JD-400-C 350~400 16.0 25 Brown
JD-500-C 450~520 20.0 25 Red
JD-600-C 520~620 24.0 25 Gray
JD-700-C 620~700 28.0 25 Yellow
JD-850-C 700~860 34.0 25 Khaki
JD-1000-C 860~1000 40.0 25 Drak Green

JD-150-A 130~160 3.8 40 Blue
JD-200-A 160~210 5.2 40 Brown
JD-350-A 300~390 9.0 40 Gray
JD-450-A 390~500 12.6 40 Red
JD-650-A 500~650 15.5 40  Green
JD-850-A 650~850 21.3 40 Drak Green
JD-1000-A 850~1030 25.6 40 Yellow
