SEK Air Mount

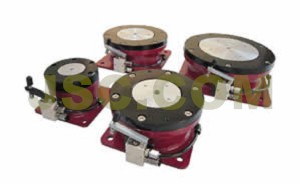

SE產品圖

Feature


	The JSC SEK series pneumatic vibration isolation system
	uses servo controlled air springs.
	Minimal settling time with optimum damping and correct
	valve gain.
	Vertical adjustable damping.
	Support payloads from 150 kg to 1200 kg.
	Per isolator Valve re-leveling accuracies to ±0.2 mm.
	Easily integrated into machine designs.

Applicaions


	Metrology Instruments、Electron Microscopes、
	Coordinate Measuring Machines、
	Precision Manufacturing Equipment、
	Sensitive Optical Laboratory Equipment、
	Environmental Test Equipment、Inspection and
	CalibrationEquipment、Specialized Isolated Foundations

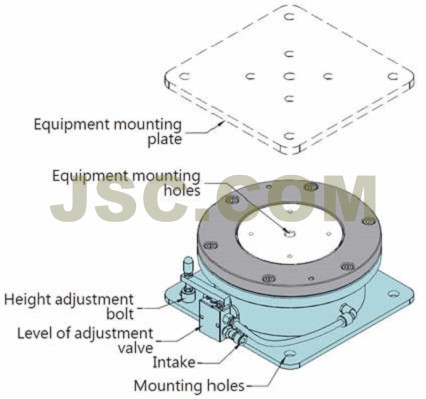

SE細部圖

SE細部圖

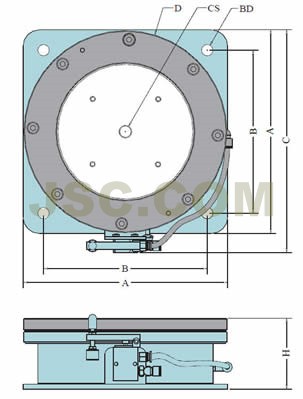

Dimensions/Rated Capacity

Part Number	Dimension(mm)							Load Range Kgs
Part Number	A	B	C	D	H	CS	φBD	Load Range Kgs
JSC-150-SEK	140	115	166	114	88	M10	9	50~180
JSC-400-SEK	170	135	195	174	88	M12	12	200~480
JSC-700-SEK	200	160	225	200	88	M12	12	400~720
JSC-1200-SEK	250	200	275	248	88	M16	14	900~1250
