JB Spring Mount JB產品圖

Feature

Ductile iron frame.
Hot dip galvanization finish.
Non-skid Neoprene pad.
Quick and easy installation.
Heavy-duty vibration isolation.
Weather resistant finish.

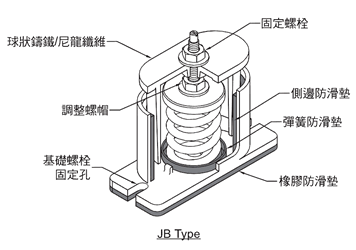

Applicaions JB細部圖

Heavy engines、
Pumps、Chillers
Boilers、Compressors
Generators
Fans

JB型彈簧式避震器目錄下載 JB型彈簧式避震器目錄下載處
JB型彈簧式避震器安裝說明下載 JB型彈簧式避震器安裝說明下載處
JB尺寸圖
Type Dimensions (mm)
L W A B H φCS
JB-S 150 65 130 104 130 M10
JB-M 210 86 185 149 185 M12
JB-N 210 86 185 149 185 M12
   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs		 Spring Rate
Kg/mm		 Rated Defl.
mm		 Color Code
JB-020-S 10~20 0.8 25 Yellow
JB-030-S 20~30 1.2 25 Drak Green
JB-050-S 30~50 2.0 25 Red
JB-070-S 50~80 2.8 25 Blue
JB-090-S 80~100 3.6 25 Brown
JB-120-S 100~130 4.8 25 Gray
JB-150-S 130~150 6.0 25 White
JB-180-S 150~180 7.2 25 Orange
JB-250-S 200~250 10.0 25 Green

JB-100-M 90~110 4.0 25

Yellow
JB-150-M 110~150 6.0 25 White
JB-200-M 150~200 8.0 25 Drak Green
JB-250-M 200~250 10.0 25 Red
JB-300-M 250~300 12.0 25 Blue
JB-400-M 350~400 16.0 25 Brown
JB-500-M 450~520 20.0 25 Red
JB-600-M 520~620 24.0 25 Gray
JB-700-M 620~700 28.0 25 Yellow
JB-850-M 700~860 34.0 25 Khaki
JB-1000-M 860~1000 40.0 25 Drak Green

JB-150-N 130~160 3.8 40 Blue
JB-200-N 160~210 5.2 40 Brown
JB-350-N 300~390 9.0 40 Gray
JB-450-N 390~500 12.6 40 Red
JB-650-N 500~650 15.5 40  Green
JB-850-N 650~850 21.3 40 Drak Green
JB-1000-N 850~1030 25.6 40 Yellow
