JH-MR&C Hanger Mount JH-MR&C產品圖

Feature

Neoprene spring cup with a projecting bushing to prevent
  steel-to-steel contact.
Neoprene bushing for upper mounting rod.
With deflection scale .
Fail safe design.
Noise and vibration isolation.
Maintenance free.
Wide load range available.

Applicaions

JH-MR&C懸吊式避震器目錄下載 JH-MR&C懸吊式避震器目錄下載處
JH-MR&C懸吊式避震器目錄下載 JH-MR&C懸吊式避震器目錄下載處


Hanging ceilings
HVAC ducting networks
Piping networks、Other suspension applications
Fans、Air units

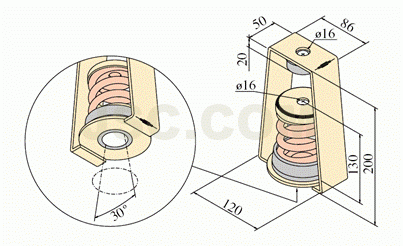

JH-MR&C尺寸圖
   Dimensions/Rated Capacity

Part Number Rated Capacity
Kgs		 Spring Rate
Kg/mm		 Rated Defl.
mm		 Color Code
JH-050-MR 45~55 2.1 25 Purple
JH-100-MR 90~110 4.0 25

Yellow
JH-150-MR 110~150 6.0 25 White
JH-200-MR 150~200 8.0 25 Drak Green
JH-250-MR 200~250 10.0 25 Red
JH-300-MR 250~300 12.0 25 Blue
JH-400-MR 350~400 16.0 25 Brown
JH-500-MR 450~520 20.0 25 Red
JH-600-MR 520~620 24.0 25 Gray
JH-700-MR 620~700 28.0 25 Yellow
JH-850-MR 700~860 34.0 25 Khaki
JH-1000-MR 860~1000 40.0 25 Drak Green
JH-150-C 130~160 3.8 40 Blue
JH-200-C 160~210 5.2 40 Brown
JH-350-C 300~390 9.0 40 Gray
JH-450-C 390~500 12.6 40 Red
JH-650-C 500~650 15.5 40  Green
JH-850-C 650~850 21.3 40 Drak Green
JH-1000-C 850~1030 25.6 40 Yellow
