| SD-500不锈钢软管 |
 |
| |
| 产品特色 |
| |
|
 |
轴向伸缩量：＋/－15mm(SD500/500H) |
|
使用温度范围：－50℃~450℃。 |
|
当使用于连续性振动时，规格表中位移量需减半。 |
|

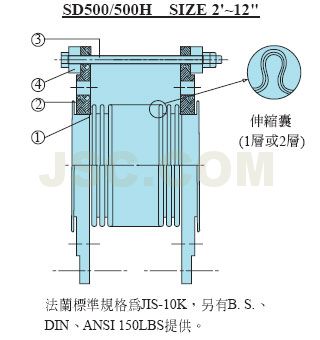

伸缩囊采OMEGA曲线结构，可消除应力局部集中的缺点。 |
|
液接面与管体材质一体成型，无焊接点；可消除焊接所造 |
| |
成的粒界腐蚀现象，增长使用寿命。 |
| |
|
| |
|
|
|
| 主要用途 |
| |
|
|
各种空调配管、消防配管、蒸气配管。 |
|
一般工厂配管。 |
|
防止泵浦、空气压缩机联结管路的振动。 |
| |
|
|
|
|
|
|
| 产品荷重/尺寸表 |
| |
| TYPE |
口径 |
总长度 |
伸缩囊 |
最大偏移量 |
工作压力 |
| 外径 |
山数 |
| Inch |
mm |
Inch |
mm |
mm |
mm |
PSI |
kg/cm^2 |

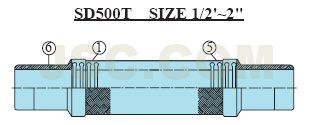

| SD500T |
1/2 |
15 |
10 |
250 |
30.5 |
|
20 |
300 |
20 |
| SD500T |
3/4 |
20 |
10 |
250 |
30.5 |
20 |
300 |
20 |
| SD500T |
1 |
25 |
10 |
250 |
38.0 |
20 |
300 |
20 |
| SD500T |
1 1/4 |
32 |
10 |
250 |
46.0 |
18 |
300 |
20 |
| SD500T |
1 1/2 |
40 |
12 |
300 |
56.0 |
16 |
300 |
20 |
| SD500T |
2 |
50 |
12 |
300 |
70.0 |
|
15 |
300 |
20 |
| SD500H |
6 |
150 |
20 |
300 |
20 |
| SD500T |
2 1/2 |
65 |
6 |
150 |
86.0 |
19 |
14 |
150 |
10 |
| SD500H |
17 |
300 |
20 |
| SD500T |
3 |
80 |
6 |
150 |
101.0 |
18 |
12 |
150 |
10 |
| SD500H |
16 |
300 |
20 |
| SD500 |
4 |
100 |
6 |
150 |
128.5 |
14 |
10 |
150 |
10 |
| SD500H |
300 |
20 |
| SD500 |
5 |
125 |
6 |
150 |
157.0 |
12 |
8 |
150 |
10 |
| SD500H |
300 |
20 |
| SD500 |
6 |
150 |
6 |
150 |
185.0 |
11 |
6 |
150 |
10 |
| SD500H |
300 |
20 |
| SD500 |
8 |
200 |
8 |
200 |
243.0 |
15 |
8 |
150 |
10 |
| SD500H |
300 |
20 |
| SD500 |
10 |
250 |
8 |
200 |
289.0 |
13 |
6 |
150 |
10 |
| SD500H |
300 |
20 |
| SD500 |
12 |
300 |
8 |
200 |
341.0 |
12 |
5 |
150 |
10 |
| SD500H |
300 |
20 |
|
| |
|
|
| |
