CH型防震基座 |
|
产品特色 |
|
|
 |
CH型防震基座采用密闭式吸震弹簧,耐候性佳。 |
 |
采多层防锈烤漆,并经盐雾试验。 |
 |
CH 型防震基座,结构简单、重量轻、易于按装。 |
 |
CH基座可依机器尺寸配合制作。 |
 |
具有地震反挚功能设计。 |
|
|
 |
|
|
主要用途 |
 |
气冷式主机。 |
|
|
|
表面处理 |
 |
粉体涂装。 |
|
|
|
|
 |

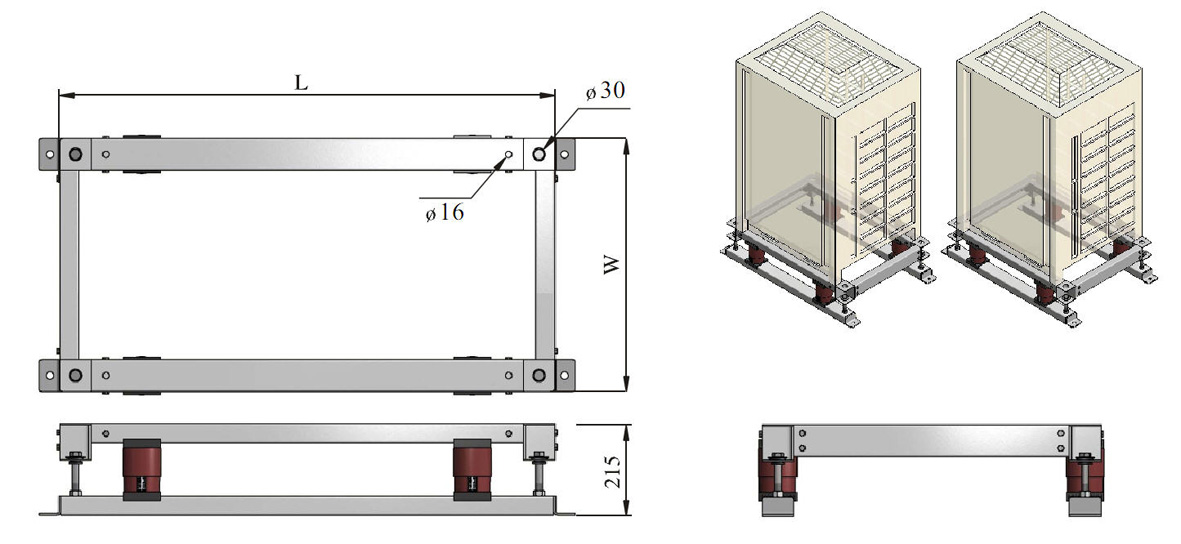

产品荷重/尺寸表 |
|
型号 |
尺寸(mm) |
避震器数量 |
荷重能力
(KG) |
L |
W |
CH-0807 |
830 |
700 |
4 |
160 |
CH-0908 |
980 |
820 |
4 |
320 |
CH-1008 |
1010 |
810 |
4 |
320 |
CH-1108 |
1110 |
820 |
4 |
320 |
CH-1208 |
1270 |
810 |
4 |
600 |
CH-1308 |
1300 |
830 |
4 |
600 |
CH-1808 |
1810 |
820 |
4 |
640 |
CH-1906 |
1980 |
600 |
6 |
1200 |
CH-1908 |
1920 |
830 |
4 |
800 |
CH-2208 |
2230 |
830 |
4 |
800 |
|
* 上表各部尺寸系依据参考机型设计,若蒙惠顾请再提供尺寸确认孔位置。 |
|
|
|
