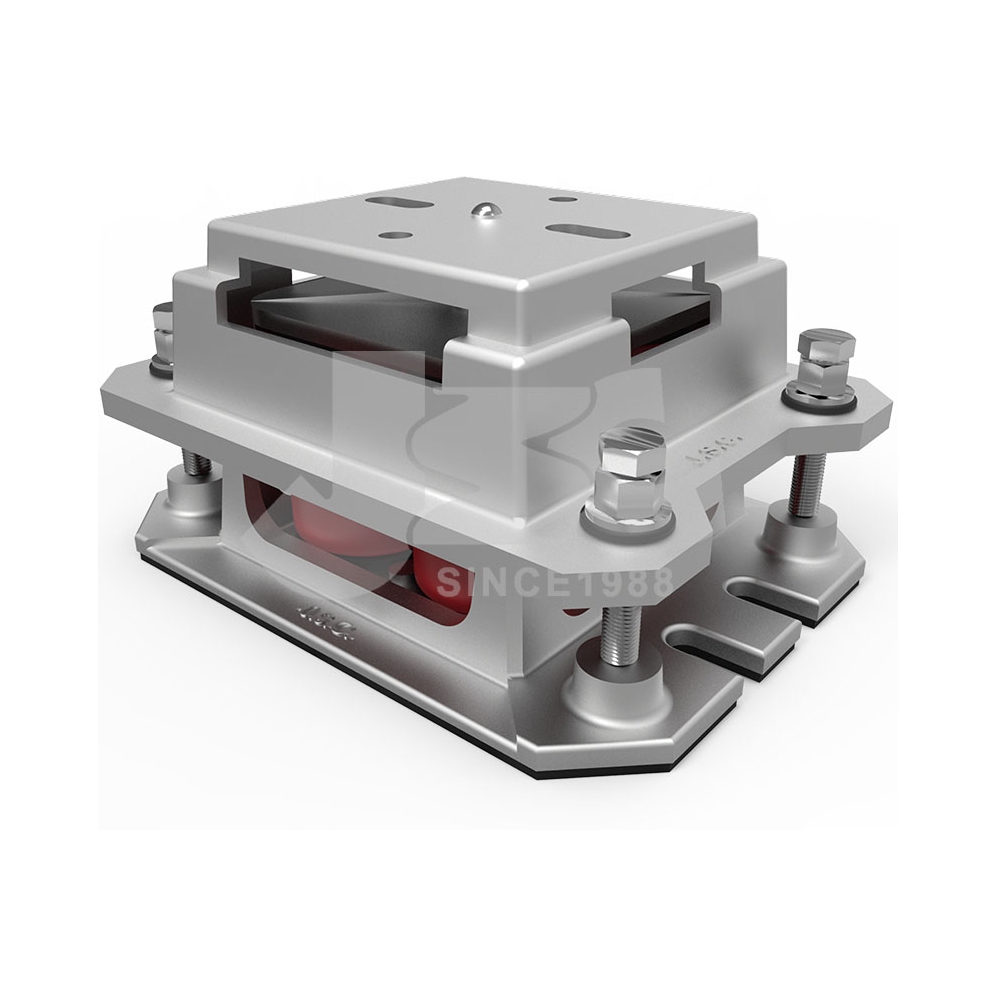

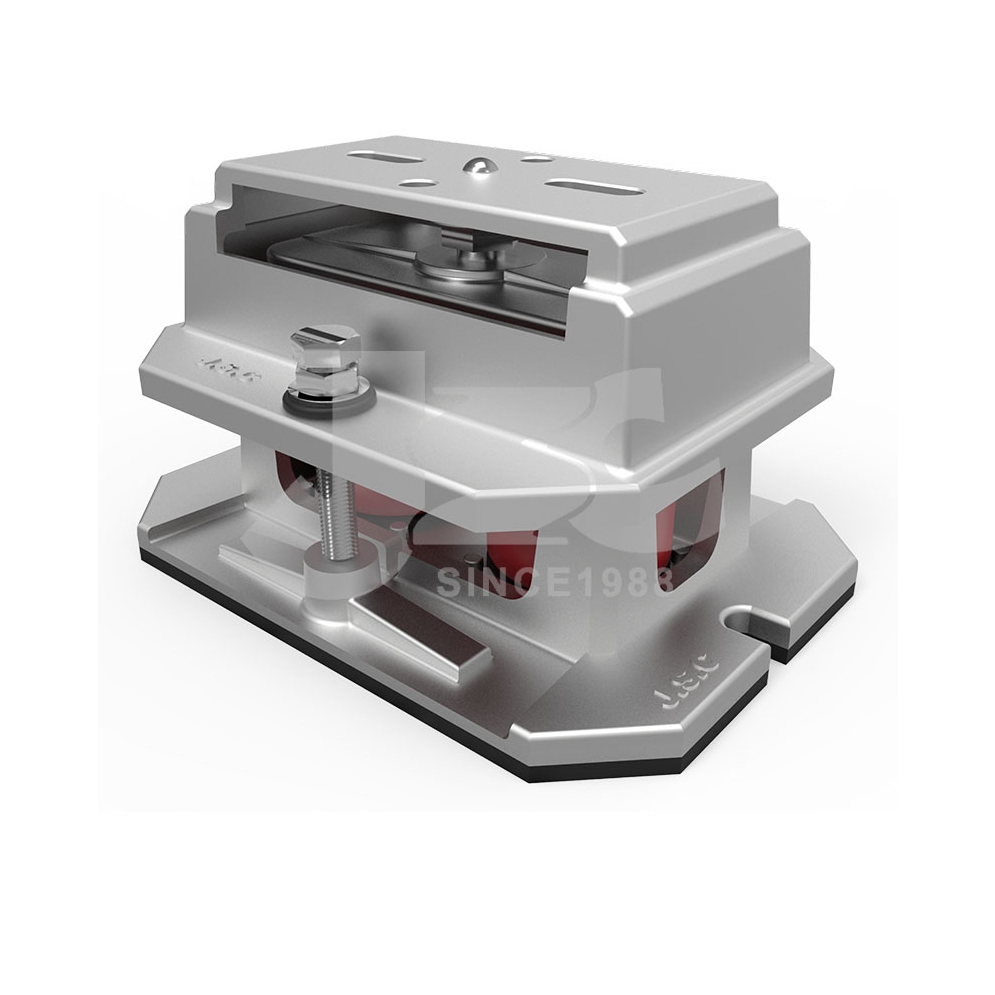

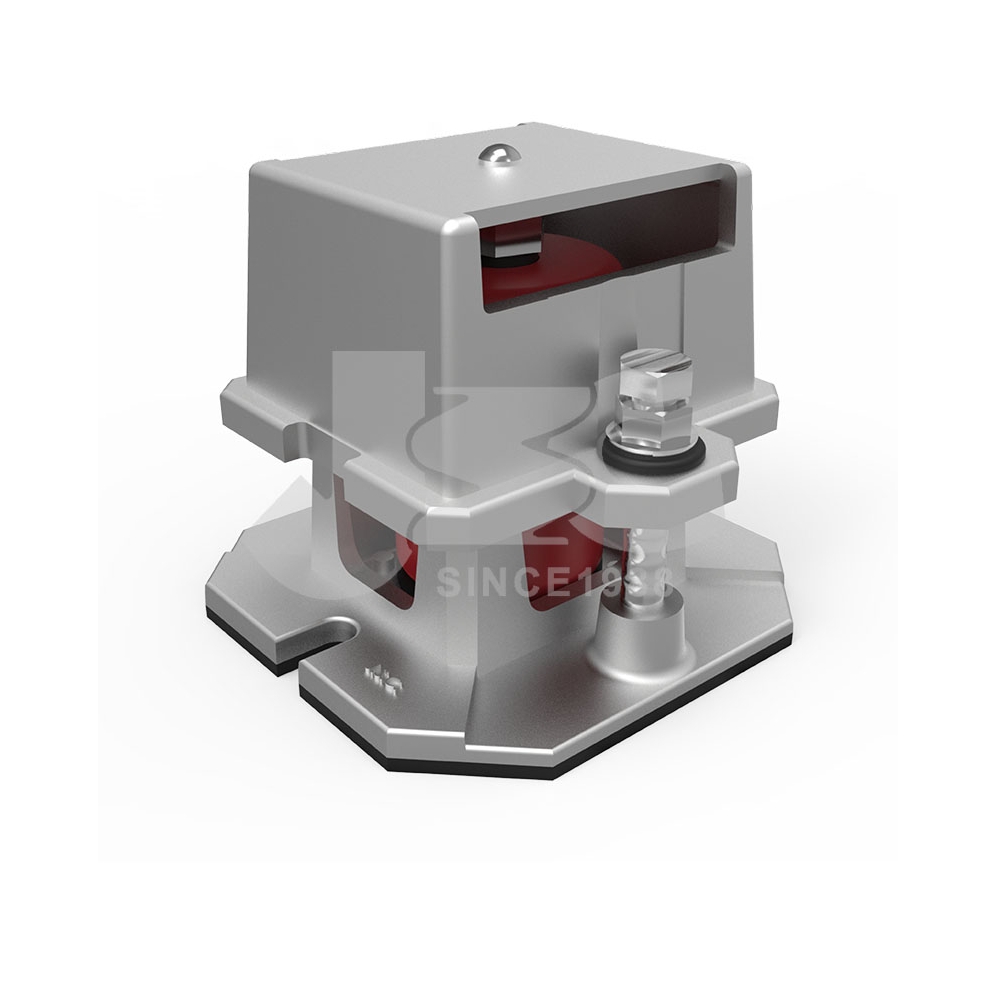

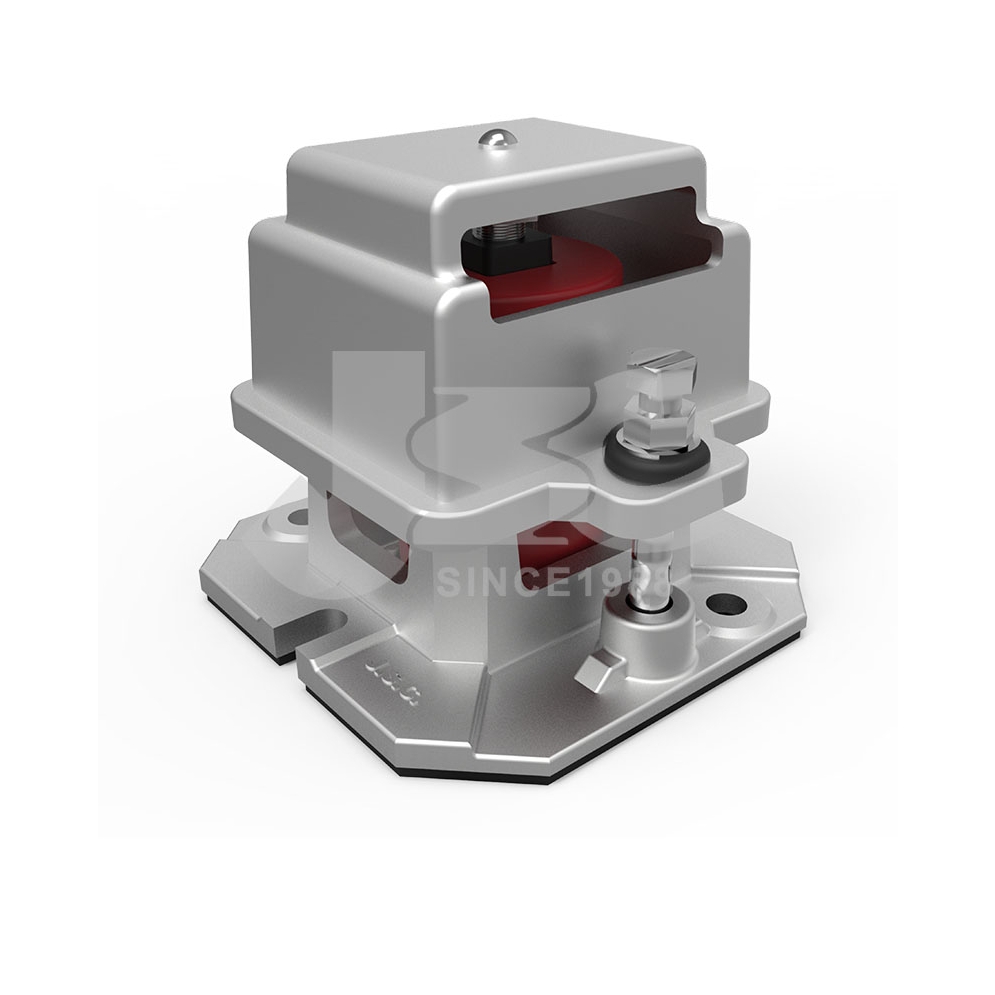

JG/JGD
BACK
►Applicaions:
Heavy engines、Pumps、Compressors、Chillers、Boilers、Cooling towers、Generators

►Feature:
1.Captive spring mount for seismic and restrained serivce .
2.Ductile iron frame and housing .
3.Resilient housing guides to prevent metal-to-matel contact .
4.Hop dip galvanization finish.
5.Low natural frequency.
6.Non-skid Neoprene pad.
7.Quick and easy installation.
8.Heavy-duty vibration isolation.
9.Weather resistant finish.

1
Catalog_JSC_Seismic Mounts_JG
