SEK
►Applicaions:
Metrology Instruments、Electron Microscopes、 Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and CalibrationEquipment、Specialized Isolated Foundations
►Feature:

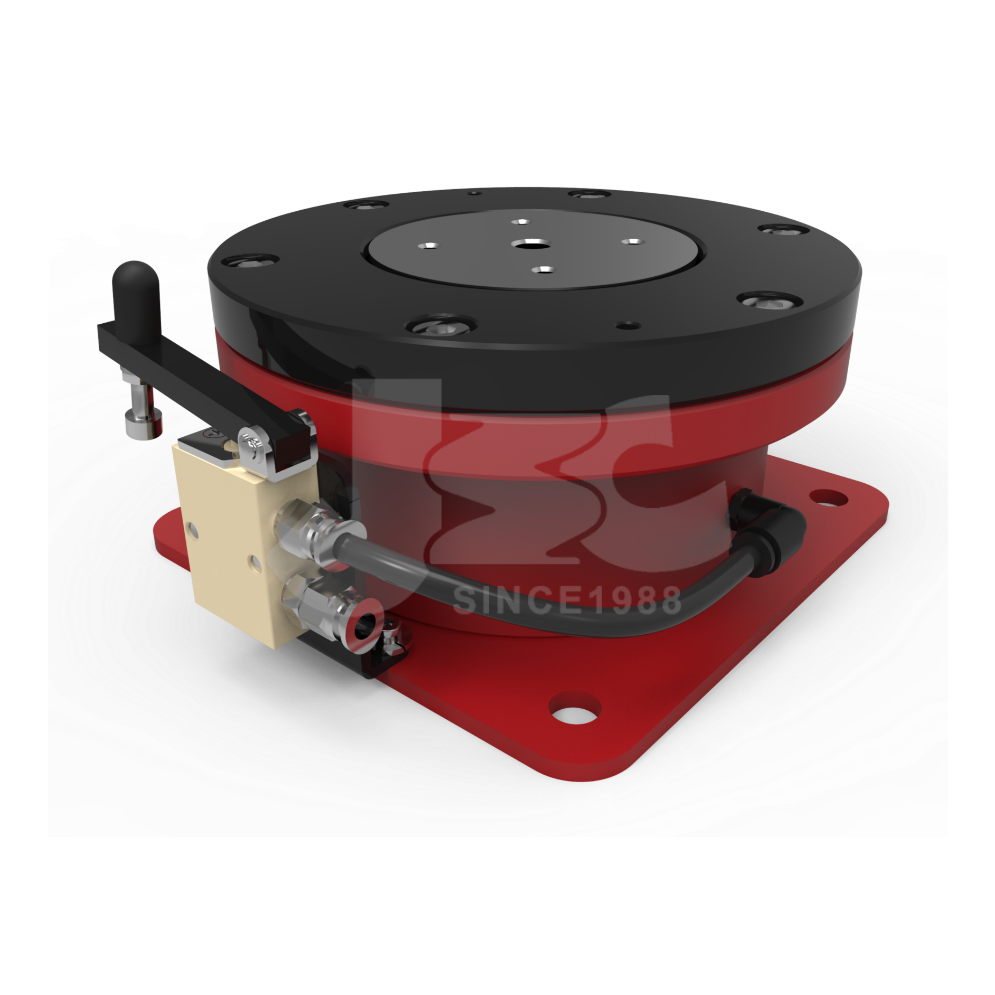

1.The JSC SEK series pneumatic vibration isolation system uses servo controlled air springs.
2.Minimal settling time with optimum damping and correct valve gain.
3.Vertical adjustable damping.
4.Support payloads from 150 kg to 1200 kg.
5.Per isolator Valve re-leveling accuracies to ±0.2 mm.
6.Easily integrated into machine designs.
Metrology Instruments、Electron Microscopes、 Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and CalibrationEquipment、Specialized Isolated Foundations
►Feature:
1.The JSC SEK series pneumatic vibration isolation system uses servo controlled air springs.
2.Minimal settling time with optimum damping and correct valve gain.
3.Vertical adjustable damping.
4.Support payloads from 150 kg to 1200 kg.
5.Per isolator Valve re-leveling accuracies to ±0.2 mm.
6.Easily integrated into machine designs.

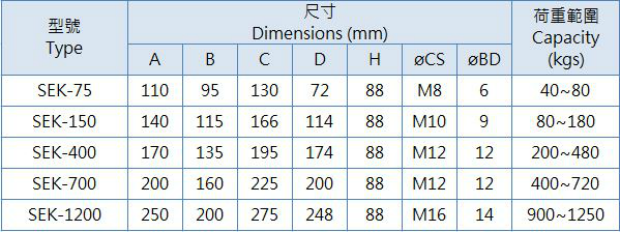

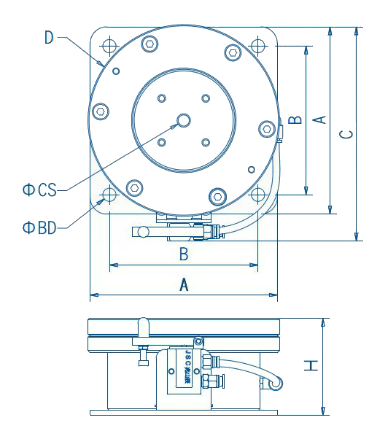

Unit : mm
*For complete product list, please download our catalog.
