SE
►Applicaions:
Metrology Instruments、Electron Microscopes、Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and CalibrationEquipment、Specialized Isolated Foundations
►Feature:
1.The JSC SE series pneumatic vibration isolation system uses servo controlled air springs.
2.Minimal settling time with optimum damping and correct valve gain.
3.Vertical adjustable damping.
4.Support payloads from 400 kg to 2000 kg.
5.Per isolator Valve re-leveling accuracies to ±0.02 mm.
6.Easily integrated into machine designs.
7.Patent No. M463163.
Metrology Instruments、Electron Microscopes、Coordinate Measuring Machines、Precision Manufacturing Equipment、Sensitive Optical Laboratory Equipment、Environmental Test Equipment、Inspection and CalibrationEquipment、Specialized Isolated Foundations
►Feature:
1.The JSC SE series pneumatic vibration isolation system uses servo controlled air springs.
2.Minimal settling time with optimum damping and correct valve gain.
3.Vertical adjustable damping.
4.Support payloads from 400 kg to 2000 kg.
5.Per isolator Valve re-leveling accuracies to ±0.02 mm.
6.Easily integrated into machine designs.
7.Patent No. M463163.

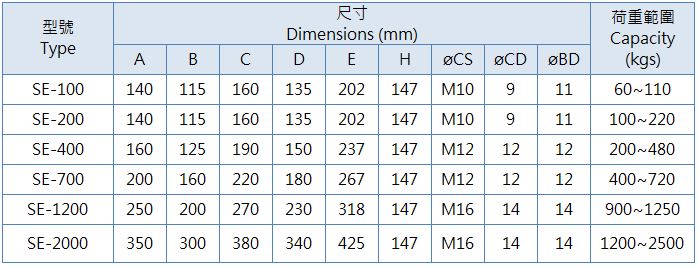

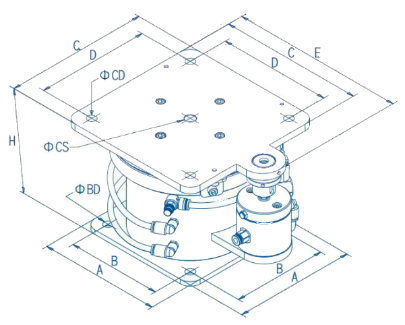

Unit : mm
*For complete product list, please download our catalog.
