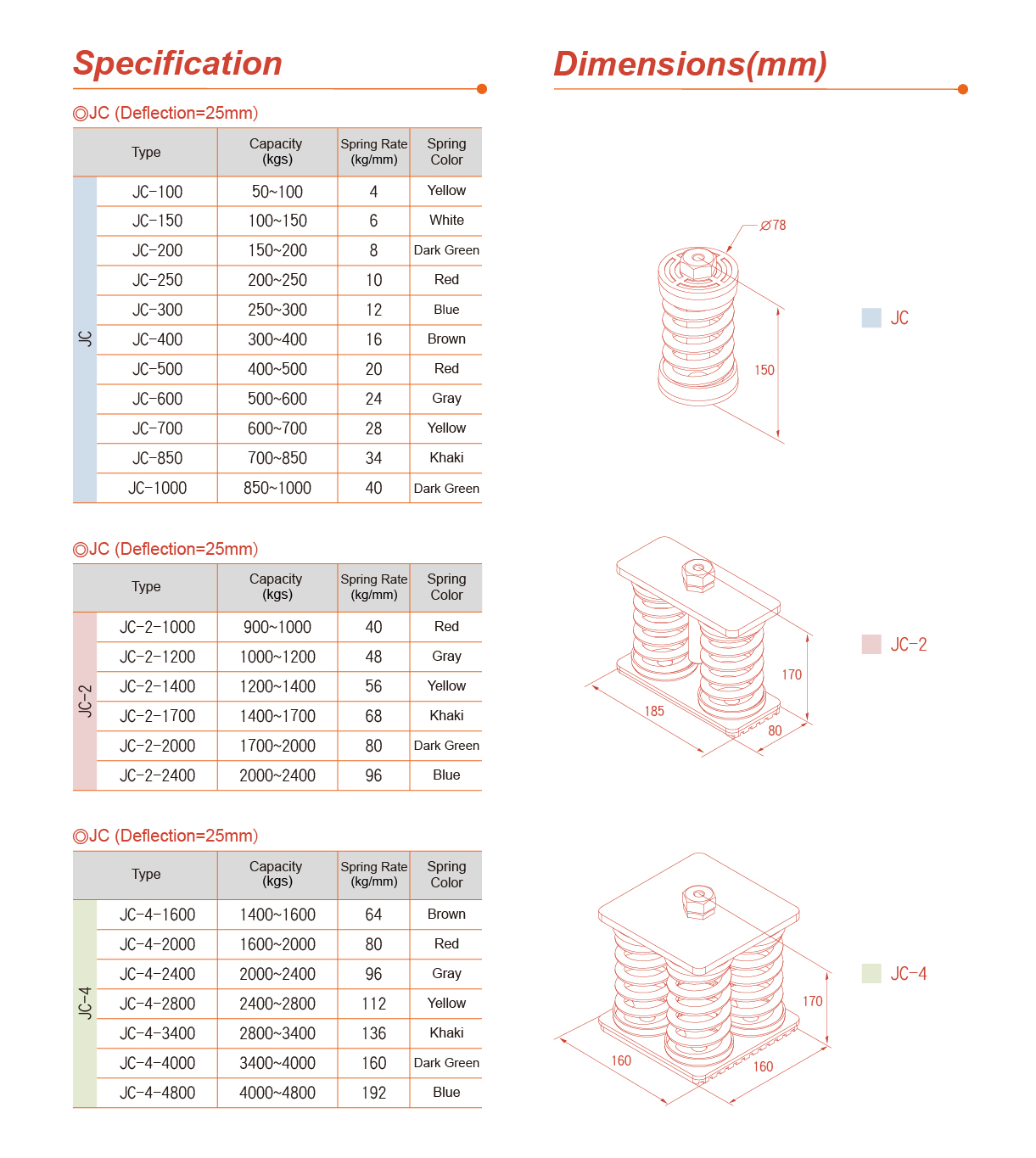

JC (25 Deflection)
►Applications:
Air blowers, Pumps, Compressors.
►Feature:
1. Mainly used with an inertial base as an open-type spring mount.
2. Used for equipment that needs maximum isolation.
3. Heavy-duty vibration isolation.
4. Easy to install, allows easy inspection since the spring deflection can be visually checked.
5. Isolators have a min. operating Kx/Kz ratio of 0.8.
6. Spring has additional 50% actual deflection.
Air blowers, Pumps, Compressors.
►Feature:
1. Mainly used with an inertial base as an open-type spring mount.
2. Used for equipment that needs maximum isolation.
3. Heavy-duty vibration isolation.
4. Easy to install, allows easy inspection since the spring deflection can be visually checked.
5. Isolators have a min. operating Kx/Kz ratio of 0.8.
6. Spring has additional 50% actual deflection.
